FLC 500 Series Pyramid-Style Hook Strip Shale Shaker Screen – API RP 13C Replacement

Aftermarket pyramid-style (3D corrugated) hook strip shale shaker screens engineered for the FLC 500 series. Built with multi-layer SS304/SS316 stainless mesh and tested to API RP 13C for accurate D100 cut point, conductance, and non-blanked area. Designed for drilling mud solids control in global oil & gas operations, supplied by a trusted shale shaker screen manufacturer/supplier. (Compatible with FLC 503 / 504 / 513 / 514 shakers.)

Categories: ,

Description

Pyramid-Style Screens for the FLC 500 Series (Hook Strip)

These pyramid-style vibrating screen panels are optimized for high flow rate and fine solids removal on FLC 500 series shakers. The 3D corrugated profile increases non-blanked area versus flat panels—boosting fluid throughput and extending screen longevity in demanding wells.
Industry note: these are commonly referred to as “pyramid” (‘PMD’) style in drilling, but this listing is for aftermarket replacement screens designed for compatibility only.

Compatibility (for quick reference): FLC 503 / 504 / 513 / 514

Key Features & Benefits

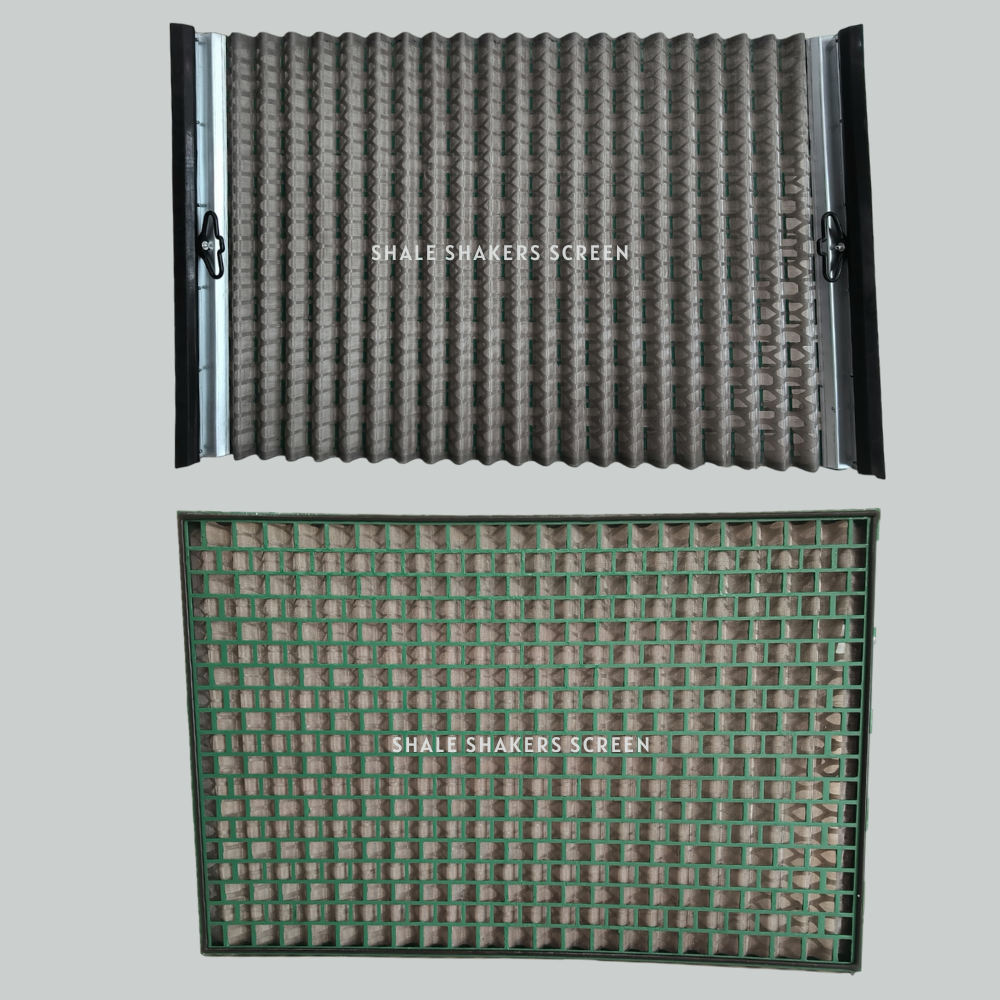

  • Hook strip construction for secure side-tensioning on the shaker bed.

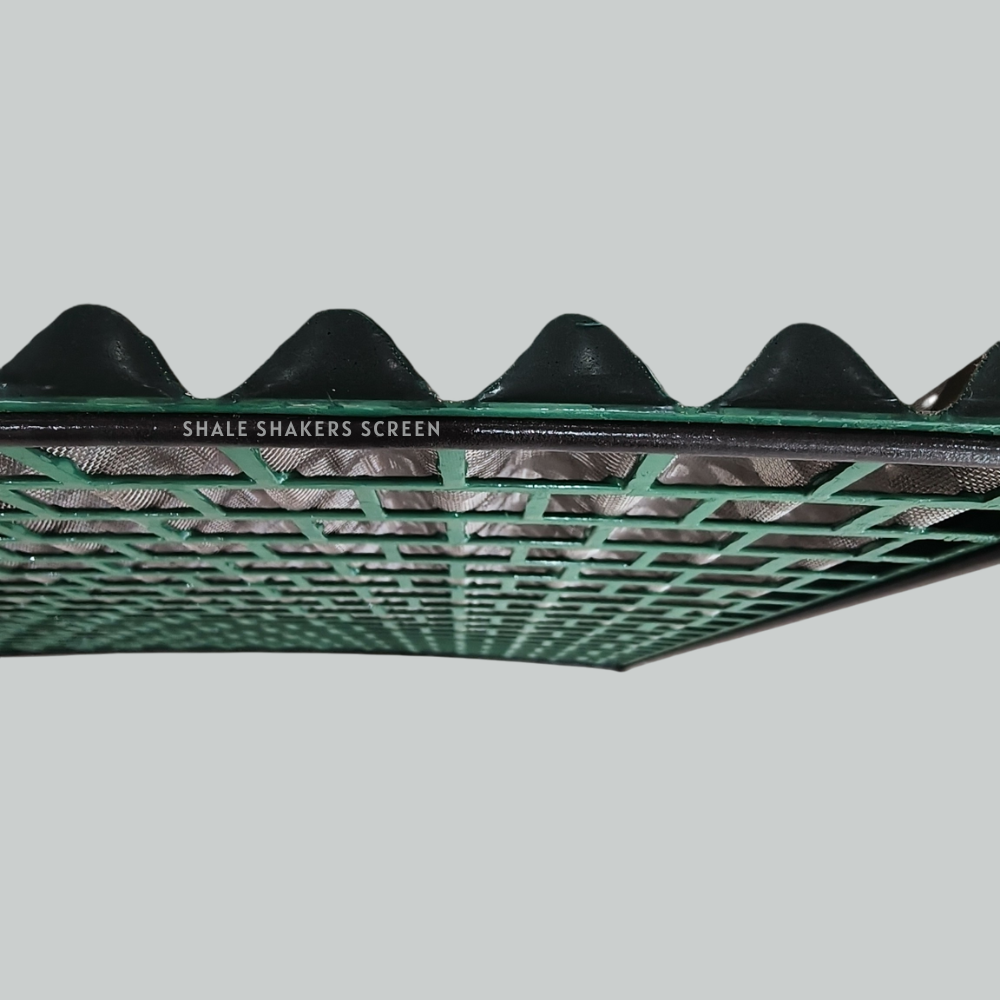

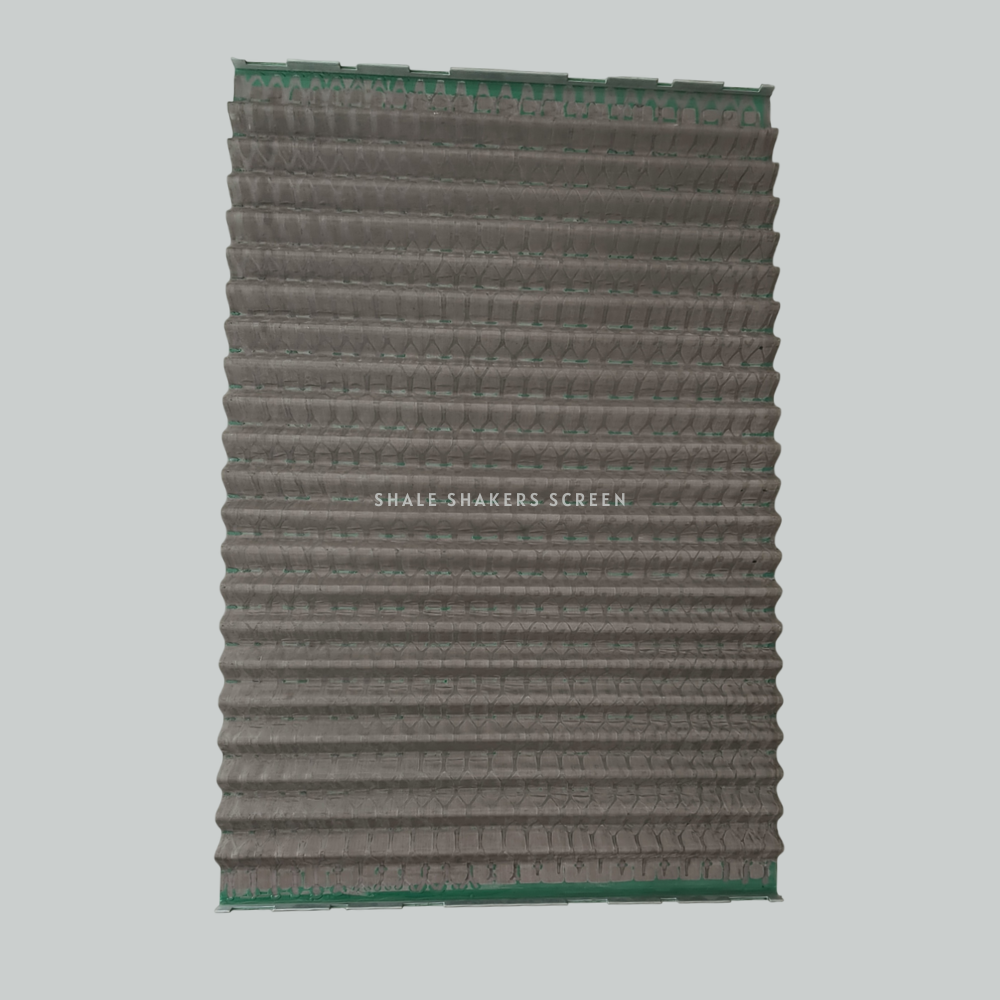

  • 3D / corrugated (“pyramid-style”) profile → higher non-blanked area and improved fluid handling capacity.

  • API RP 13C compliant → verified D100 cut point and conductance for reliable separation.

  • Mesh range: API 10–325 (full shaker screen mesh spectrum).

  • Materials: Multi-layer SS304/SS316 wire cloth for durability in WBM/OBM.

  • Typical service life: engineered for longer runs vs. flat panels under comparable conditions.

Technical Specifications

  • Type: Hook strip, pyramid-style (3D corrugated)

  • Overall size: 1050 × 695 mm (≈ 41.3 × 27.4 in)

  • Mesh options: API 20, 40, 60, 80, 100, 120, 170, 200, 230, 270, 325

  • Test standard: API RP 13C (cut point & conductance)

  • Use cases: Shale shaker screens for oil and gas, HDD, and other solids control systems

Where It Fits in Your Mud System

Use these pyramid-style drilling mud screens on FLC 500 series shakers when you need higher capacity and tighter control of the screen for mud shale shaker stage—especially useful on wells with variable flow and fine solids.

Inquiry & Orders

Looking for shale shaker screens for sale with global delivery? Request API 13C reports, mesh charts, and bulk pricing from a reliable solids control screen supplier.

Disclaimer:

Derrick®, FLC™, Pyramid™, PMD™, and PWP™ are trademarks of Derrick Corporation. The shaker screens described here are aftermarket replacement products manufactured by Anping County GuangMing Metal Products Co., Ltd and are not original equipment manufacturer (OEM) products. These screens are designed solely for compatibility with Derrick FLC 500 Series shakers and have been tested to meet API RP 13C standards where applicable. Use of these aftermarket screens is not authorized, endorsed, or sponsored by Derrick Corporation.
