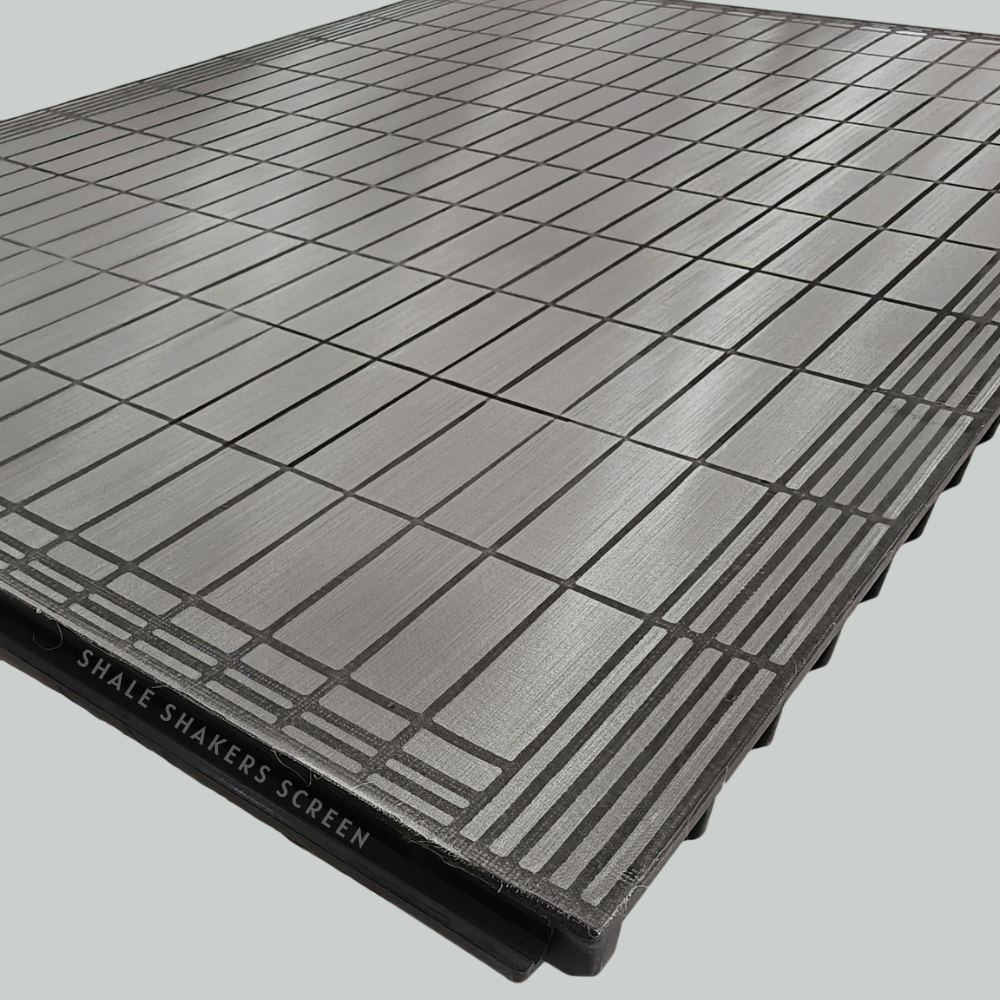

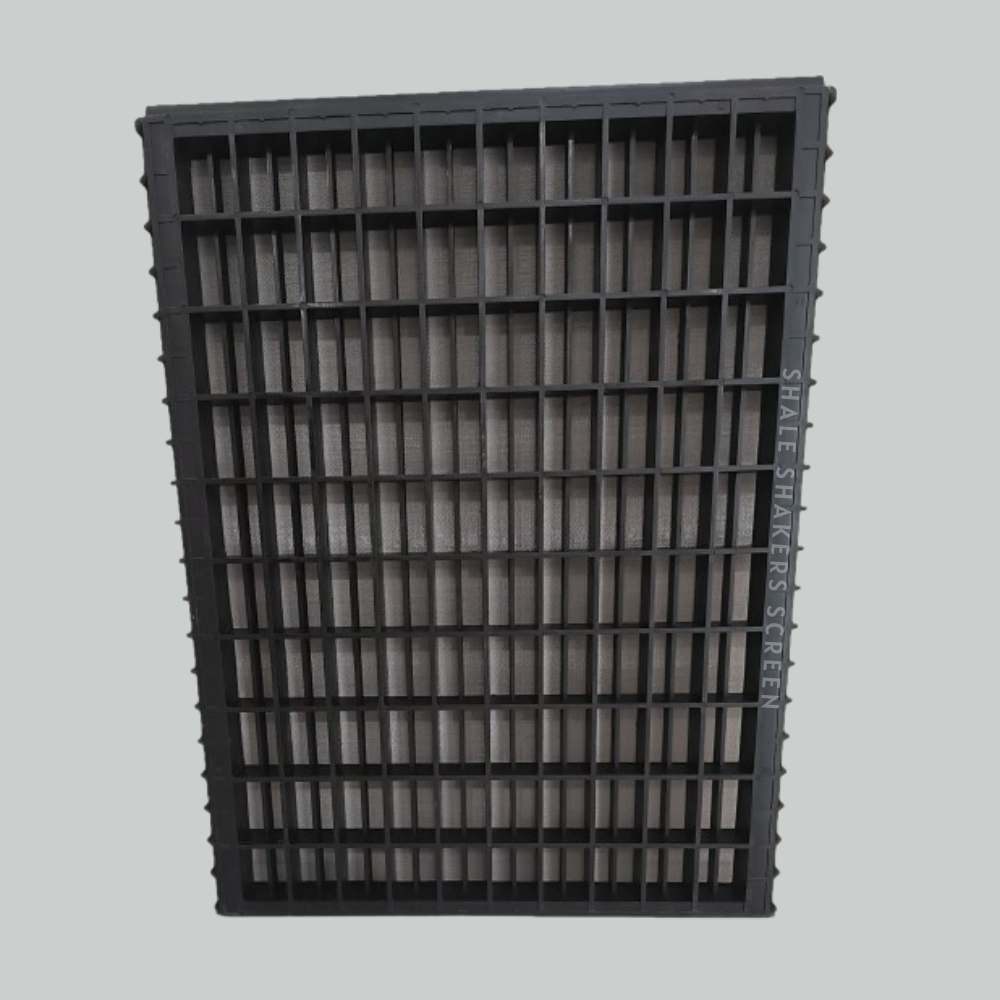

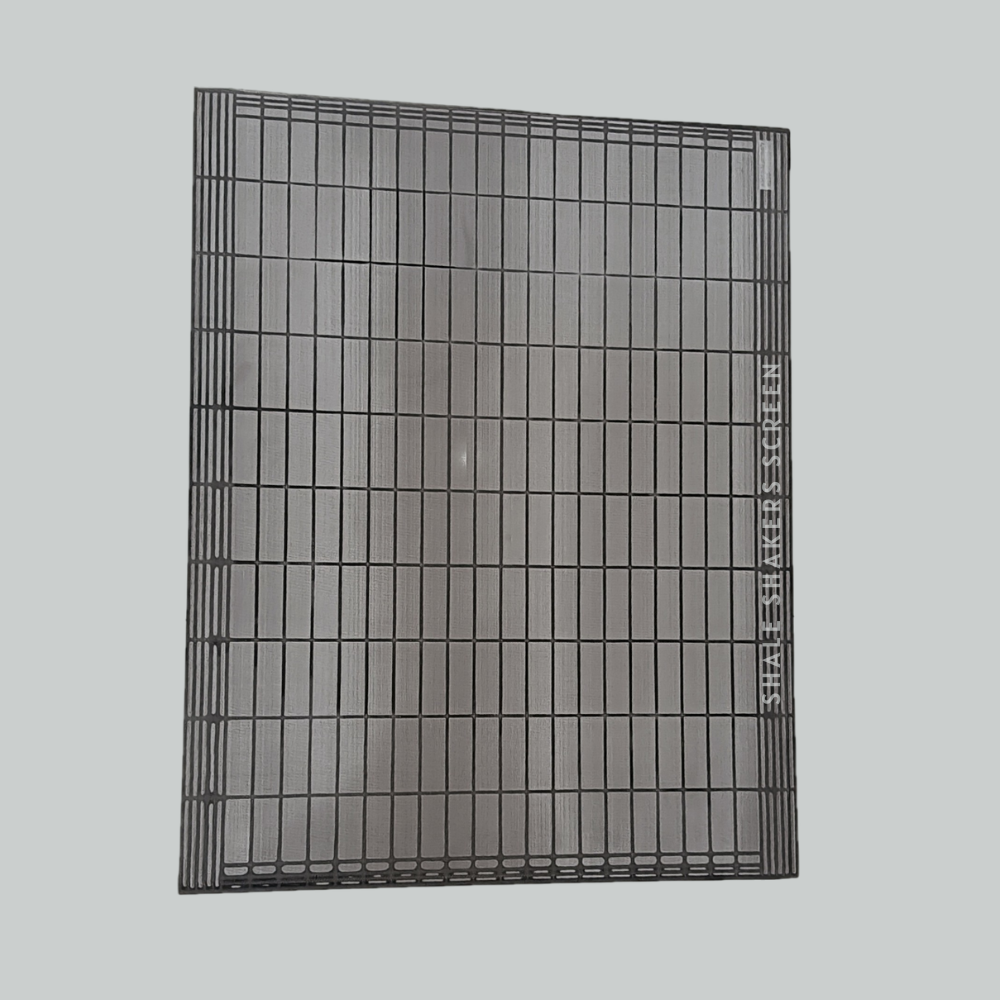

NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C

NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C
NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C - Image 2
NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C - Image 3
NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C - Image 4
NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C - Image 5

NOV Brandt VSM 300 Primary Composite Shale Shaker Screen – Replacement API RP 13C

High-quality replacement composite screens for NOV Brandt VSM 300™ shakers (Primary Deck). As the main working screen in the shaker, the primary panel handles the bulk of drilling mud solids control. Manufactured with multi-layer SS304/SS316 mesh and a durable composite frame, these aftermarket solids control screens are API RP 13C certified, available in API 10–325 mesh sizes, and supplied worldwide.

Categories: ,

Description

VSM 300 Primary Deck Screens Explained

In a VSM 300 shaker, the primary screen is the main screening surface. It sits on the middle deck and performs the major solids removal work, handling most of the drilling mud flow.

  • Scalping screens (top deck) remove large cuttings before mud reaches the primary deck.

  • Primary screens (middle deck) handle the main solids separation.

  • Secondary/drying screens (bottom deck) recover fluid and dry remaining solids.

That’s why the VSM 300 primary screen is the most frequently replaced screen — it takes the heaviest load and finest separation duty.

Features & Benefits of VSM 300 Primary Screens

  • Composite frame construction – lighter, corrosion-resistant, long service life.

  • Mesh range: API 10–325 (full set of shale shaker screen API numbers).

  • Screen styles: Flat PWP and Pyramid PMD designs available.

  • API RP 13C tested – certified cut point (D100), conductance, and non-blanked area.

  • Screen longevity: Up to 30% longer life compared to steel frame screens.

  • Dimensions: ~35″ × 27″ (≈ 889 × 686 mm).

  • Compatibility: NOV Brandt VSM 300™ primary deck.

Technical Specifications

  • Frame Type: Composite aftermarket replacement.

  • Mesh Material: SS304 / SS316 stainless steel wire cloth.

  • Options: Flat (PWP), Pyramid PMD, and corrugated 3D screens.

  • Applications: Shale shaker screens for drilling, HDD projects, mining screens, and coal cleaning screens.

Applications in Solids Control

The primary VSM 300 screen is vital for drilling mud treatment. By maintaining precise cut point and higher conductance, it ensures:

  • Efficient removal of drilled cuttings.

  • Better protection for downstream solids control equipment.

  • Reduced drilling fluid loss and cost savings.

Disclaimer

NOV Brandt™ and VSM 300™ are trademarks of National Oilwell Varco. The screens offered are aftermarket replacement products manufactured by Anping County GuangMing Metal Products Co., Ltd and are not OEM products. They are designed for compatibility only and tested according to API RP 13C standards.

Inquiries & Orders

Looking for VSM 300 primary shale shaker screens for sale? Contact us for API RP 13C reports, bulk pricing, and fast worldwide shipping. We are global shale shaker screen suppliers with reliable export support.
